300watt Solar Panel

  • Description
Product Detail

Offering 300watt solar panel quotation consultation and free sample, it is one of the professional 300watt solar panel manufacturers, welcome to wholesale cheap 300watt solar panel made in China in stock at low price from us.

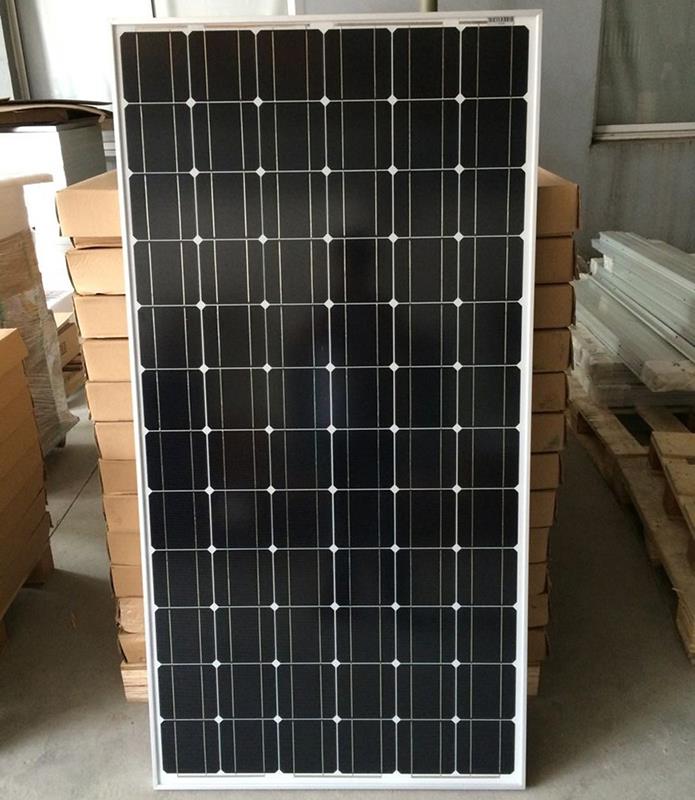

Yangtze  monocrystalline 300watt solar panel is perfect for decreasing your electrical bill,or for a off-grid system. Whether you want to connect this to the electrical grid, or power your off-grid cabin, Yangtze’s solar panel 300w will be the key element to your solar system.

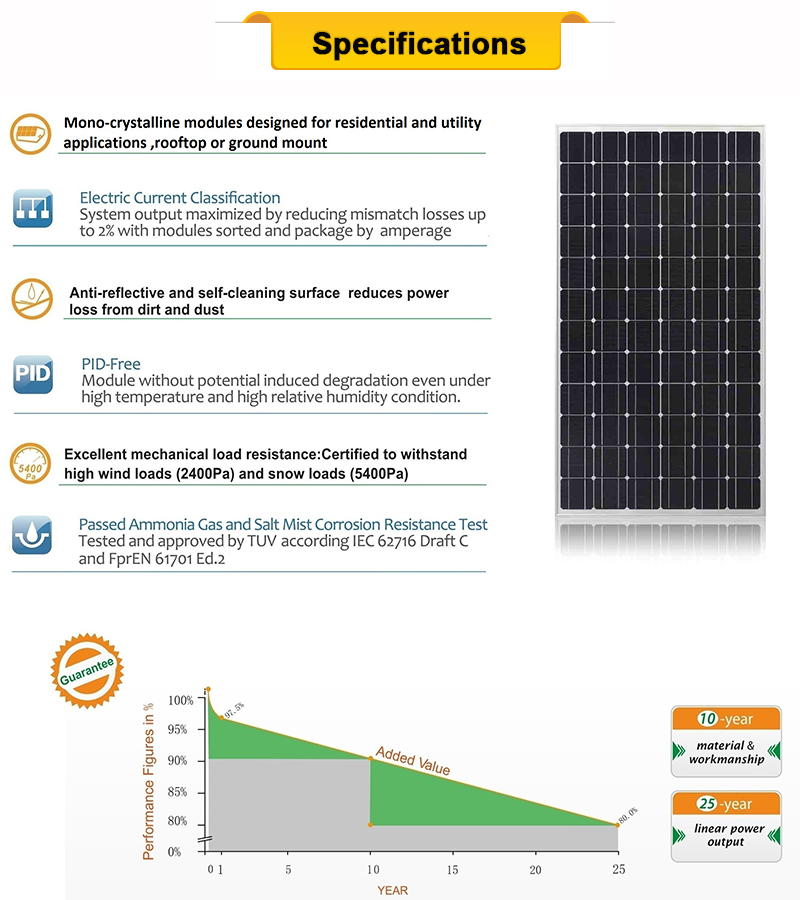

As the monocrystalline 300watt solar panel has the key features :

?10 years product warranty , 25 years linear power output warranty

?Designed for residential and utility applications ,rooftop or ground mount

?Outstanding performance in low-light irradiance environment

?Positive power tolerance 0~+3%

?Heavy snow load up to 5400Pa , wind load up to 2400Pa

?Salt mist , ammonia and blown sand resistance for seaside ,farm and desert environment

?100% EL double inspection ensures modules are defects free ,no hot-spot heating

?Certified by TUV ,CE ,UL

Electrical Parameters at STC
ModelYS300M-72
Rated Maximum Power at STC300W
Maximum Power Voltage (Vmp)36.2V
Maximum Power Current (Imp)8.35A
Open Circuit Voltage (Voc)45.2V
Short Circuit Current (Isc)8.77A
Module Efficiency15.54%
Power Tolerance 0~+3%

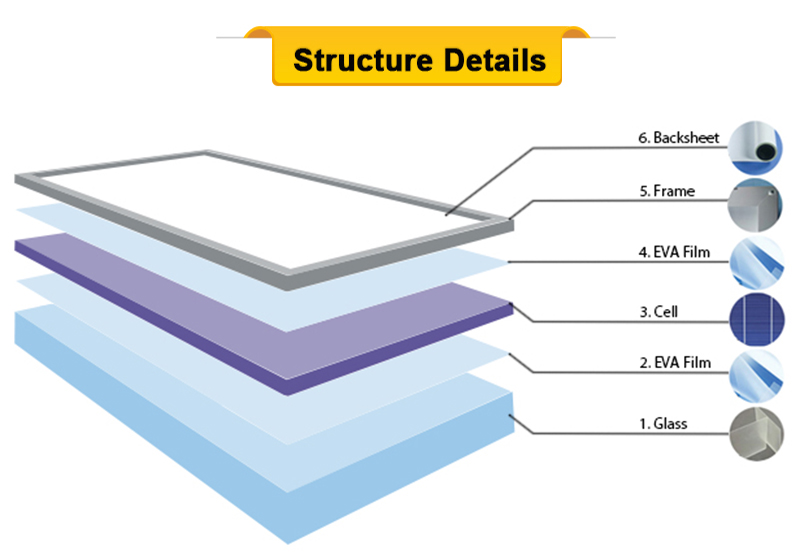

Mechanical Parameters

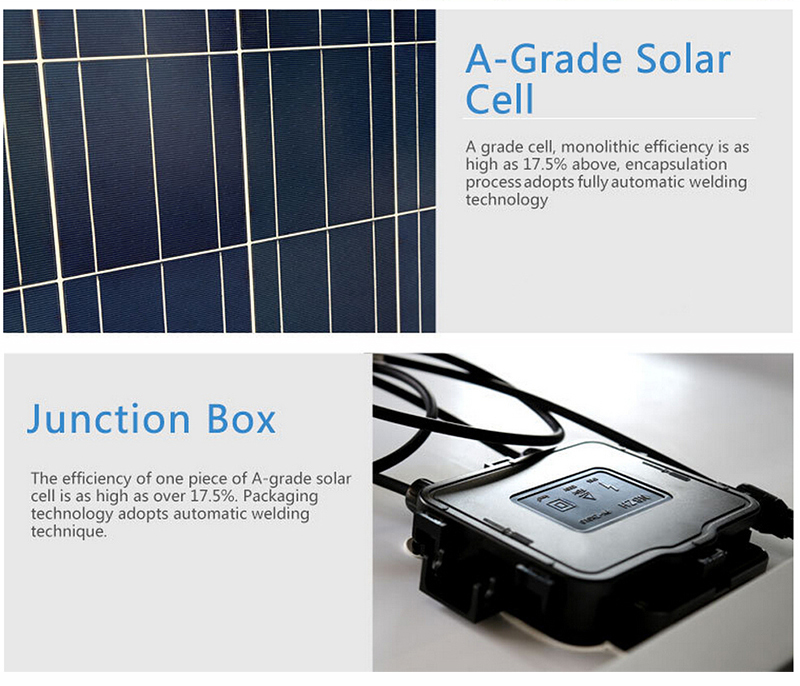

Cell Type Mono-crystalline 156x156mm (6inch)
No.of Cells 72 (6x12)
Dimension1956x990x40/45/50mm
Weight 26.5kg (approx)

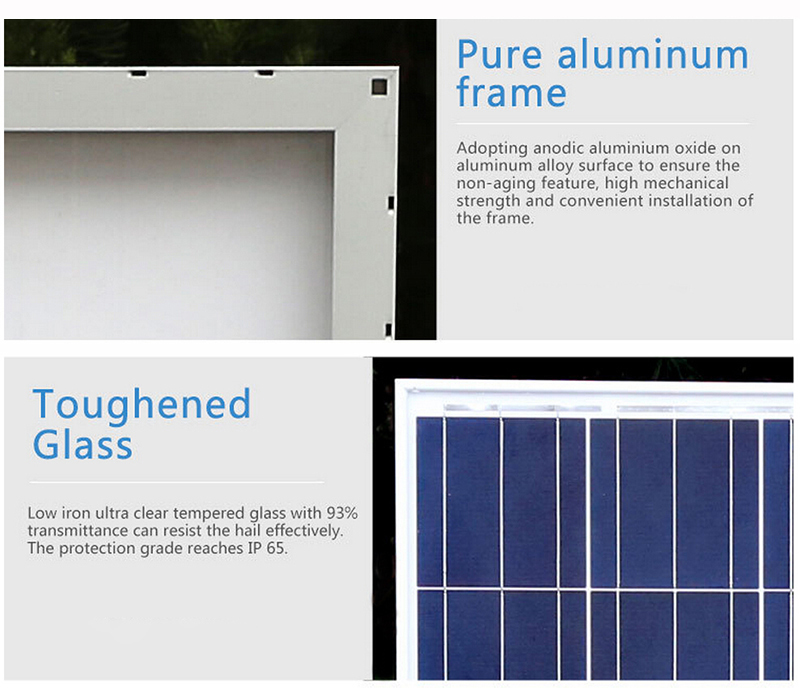

Glass3.2mm, High Transmission ,Low Iron , Tempered Glass
Junction Box IP65 & IP67 Rated
Output Cable Section Size: 4mm² , Length: 900mm
Frame Anodized Aluminum Alloy
No. of Bypass Diodes 3 & 6
Connector MC4 Compatible
Working Conditions
Maximum System Voltage DC 1000V(IEC) / 600V(UL)
Operating Temperature -40?~+85?
Maximum Series Fuse 15A
NOCT45±2?
Application ClassClass A
Temperature Coefficient
Temperature Coefficient of Pmax-0.40%/?
Temperature Coefficient of Voc-0.30%/?
Temperature Coefficient of Isc+0.05%/?
STC: Irradiance 1000W/?, Module Temperature 25?, Air Mass 1.5
