3 Sections Treatment Table

  • Description
Product Detail

Product feature

? Massaging treatment equipment with humanized design;

? Equipped with power-driven pedal switch for electric lifting and hand-held inching switch, available for inching lift of the therapeutic bed; labor-intensity of massage therapist was alleviated so as to take care of the chiropractor's spine health ;

? Equipped with a Taiwan linear motor with long stroke for lifting, no noise and smooth operation;

? Using wear-resistance leather life and easy cleaning with long service;

? Equipped with the bed-leg adjusting screw, the multi-position treatment bed table surface can be leveled on any ground;

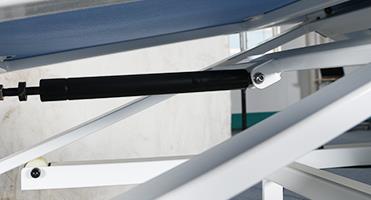

? Using imported pneumatic spring for durable service;

? The bed body shall take the lifting adjustment mode of motor plus pneumatic spring which is easy to operate;

? Equipped with a breathing hole for patient on prone position.



Parameters


Model

XY-K-SF-3

Power supply

AC220V 50Hz   DC24V

Rated input power

190VA

The maximum loads

200kg

Specifications (mm)

1970 × 660 × 570 ~ 870mm

Bed surface lifting range

0 ~ 300mm continuously adjustable

Head section surface features

Relative horizontal adjustment angle: -20 ° ~ +30 °

Lumbar section surface features

Relative horizontal adjustment angle: 0 ° ~ + 25 °

Lower body section surface features

The relative horizontal adjustment angle: -25 ° ~ +40 °


image003.jpg image004.jpg
