3 Axis Heavy Full Function CNC Lathe
-
Min Order
1
-
Product Unit
Pieces
-
Origin
China Mainland
-
Payment
- Contact Now Start Order
- Favorites Share
- Description
Product Detail
FOSHAN SHUNDE GUOQIANG DAOSHENG CO.,LTD.
Product introduction:
DS-5S Slant bed CNC lathe machine with unit type power head. Machine tool control system uses Taiwan system, transmission mode uses the bus transmission. The Unit type power head structure: Side Milling 1 with 2 gears type (1 long 1 short); Power head motor power: Standard 1.3/(optional 1.8); spindle is with the degree of positioning function. The spindle servo motor adopts Taiwan's brand servo motor, which has the advantages of high rigidity and high precision; They are widely used in intelligent furniture fittings, bathroom accessories, motor shaft fittings, furniture hardware, medical equipment, copper and aluminum parts, electronic industry, lighting hardware, household appliances.
Product parameters:
Model | DS-5S (Side milling) |
The style of installation tool | Gang type+ power head |
Adjacent tool change time (s) | 0.3 |
Tool change style | Random |
Square knife knife holder (mm) | 20×20 |
Round hole knife holder(mm) | f20 |
Chuck Size | 5" |
Spindle speed (r/min) | 1-4500 |
Spindle bore (mm) | f46 |
Center high (mm) | 56 |
Max.swing diameter (mm) | 380 |
Main axis motor power (KW) | 5.5 |
Minimum system Resolution (mm) | 0.001 |
X/Z Axis travel (mm) | 680/250 |
X/Z axis fast moving speed (m/min) | 26(Factory setting) |
X/Z axis Repetitive positioning accuracy (mm) | ±0.003 |
Taper (mm) | =0.003/100mm |
Card position size (mm) | =0.003 |
X axis servo-motor (KW) | 1.3 |
Z axis servo-motor (KW) | 1.3 |
Hydraulic station(KW) | 0.75 |
Water tank motor power (KW) | 150W |
Cooling water tank capacity(L) | 60 |
Bar feeder center height (mm) | 1120 |
Power (kw) | 10 |
Weight (KG) | 2800 |
Size (L*W*H) (mm) | 2250x1320x1760 |
Product features:
1. High precision, strong vibration resistance

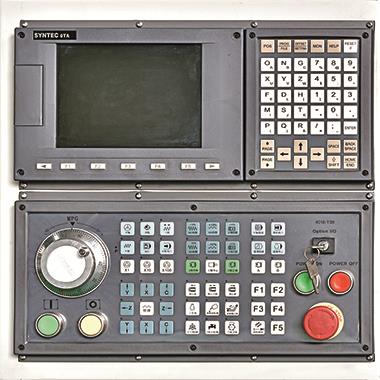

2. Machine tool control system uses Taiwan system
3. Machine tool base is resin bonded sand
4. Taiwan high precision spindle
5. X axis and Z axis the displacement speed can reach up to 30M/min
6. With 1-2 integrated power head
7. Spindle motor adopts AC servo motor
8. Workpiece clamping type:Hydraulic
9. Automatic lubricating System
10. Can be used with automatic manipulator
11. Full close protection
Product detail:
Certificate of quality:
Our Service:
FAQ
Q: minimum order quantity
A: 1 SET
Q: delivery time
A: the delivery time will be confirmed by different machines with different configurations. Some models are in the store. Some models take about three months.
Q: warranty period
A: from the date of bill of lading, the company implements after-sales service. The warranty period is 12 months. During the warranty period, our company will provide replacement parts free of charge if the parts or damage are caused by the quality of the machine. At the same time, the machine should be provided by the buyer according to the operation procedure (except for improper operation or artificial damage).
Q: payment time
A: we like to make 100% T/T.
Q: Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
Production workshop:
The existing machinery production staff of more than 60 people,Research and development staff 10 people, Accessories production staff more than 30 people, Professional after-sales service staff of 10 people, Mainly for mechanical design,Electrical control, Software control, Professional talents in after-sales service and other fields. Has a number of independent innovation technology, Multiple patented technologies. Company production workshop area of more than 6000 square meters, Accessories processing workshop more than 2000 square meters, Office area more than 1000 square meters; In order to ensure the accuracy of important parts, The establishment of internal processing workshop, an area of more than 1000 square meters.
Packaging Details:
Plastic stretch film for the first layer, EPE packaging film for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
Standard export port:
Shunde or Shenzhen
Standard packing:
Wooden box packing
2500*1600*2200mm
Packing scene picture
Payment
Our Customers:
Contact Us:
FOSHAN SHUNDE GUOQIANG DAOSHENG INDUSTRIAL CO.,LTD.
TEL: +86 18923291668
Mail: louisalu@das-cnc.com
Address: NO.4-7, Xingye 3rd Road, Guanglong Industrial Park, Chencun, Shunde District, Foshan City
-
