Kids 200cc UTV


General descprition:

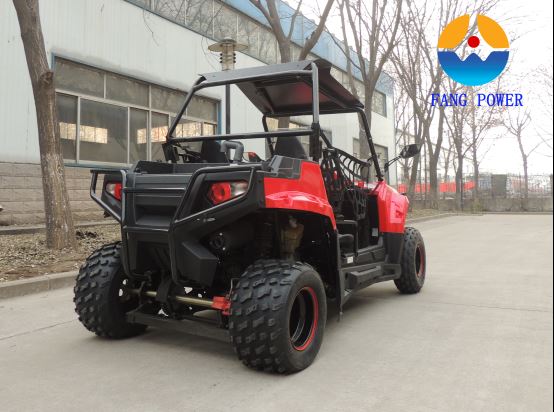

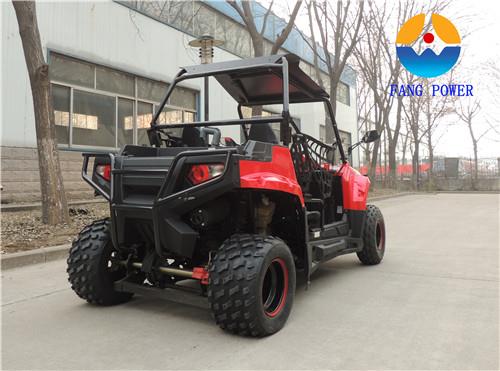

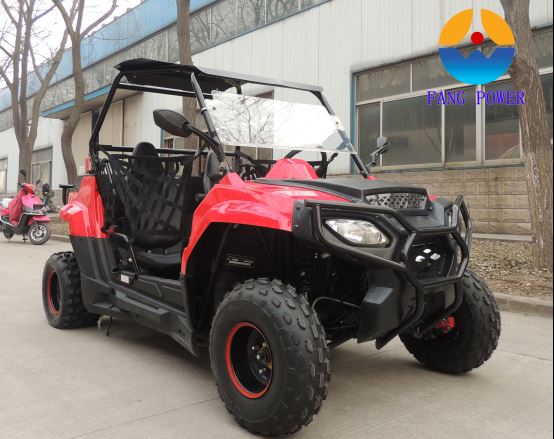

FX 200cc Tiger utv is the result of over ten years technology developing, upgraded longer style with rigid roof ,windshield ,front and rear bumper, speedmeter and fuelmeter .Chain drive combination with CVT automatic transmission are more easy to maintaining and repairing,.Small full-load capacity and convenient operation also suitable for kids and adult on off road trips .This UTV is applicable to farming, forestry, beach and hill hunting .

Specification:

KIDS FX 200cc TIGER UTV

ENGINE

Certification

EPA EEC approved

Engine type

4-stroke,Single-Cylinder, Air/Oil-cooled

Displacement

175cc

Horse Power

7.6kw(7000r/min)   10.5HP

Valve Configuration

OHV

Compression ratio

9.0:1

FUEL SYSTEM

Fuel Delivery System

Fuel Pump Carburetor

Choke System

Automatic

Fuel capacity

9.5L (2.1 Gallon)

DRIVETRAIN

Driveline Type

2X4

Final Drive

Chain-drive

Transmission

Constantly Variable Transmission

Gear Selection

Forward & Reverse Single Speed

ELECTRICAL SYSTEM

Forward Lights

Headlights-High & Low Beam

Rear Lights

Brake Lights & Left/Right Signal lights

Starting system

Electric start

Ignition system

C.D.I

SUSPENSION / BRAKES

Suspension Front

Double A-arm optional

Suspension Rear

Dual Shock Swing arm

Brakes Front

Front Dual Hydraulic Disk

Brakes Rear

Rear Single Axle Hydraulic Disk

TIRES

Front Tread

1020mm ( 40.2 in)

Rear Tread

965mm ( 38.0in)

Front & Rear tire size

19x7-8 / 20x10-9

MISC

Loading information

8 units/20''; 18units/40''; 26units/40HQ

Manufacturers Defect Warranty

6 Months

Top speed

65km/h

Dry weight

245kg ( 540 lbs.)

Gross weight

320kgs(704lbs)

Wheelbase

1860mm (71.0in)

Vehicle dimension (L*W*H)

2450x1220x1397mm ( 96.5x 48.0x55.0 in)

Packing size

2290x1300x815mm (90.2x51.2x32.1in)

Ground clearance

152mm (6in)

Safety

Driver & Passenger Seat belts/ Driver and Passenger safety net restraints.

Original

China

Delivery

In 15 days

Produce Capacity

5000 units/Year

Port of loading

Qingdao

MOQ

8PCS

Price Terms

TT

Color

Red.Yello.White.Blue.Camo green.Red spider


Package:

PE stretch film inside,carton outside and packed by steel frame
