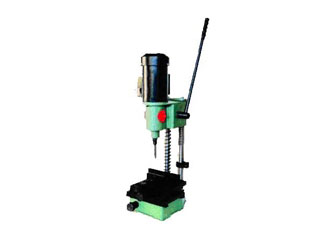

190-0003 Mortising Machine (with X/Y Travel Table)

  • Description
Product Detail

Item:190-0003
• Model: MS36127-A1
• Make a square hole in the fraction of the time it takes by hand
• Easier layout for professional mortise and tenon joints in furniture, cabinets, and restoration projects
• Fence with hold down clamp keeps workpieces from lifting off the table
• Includes: fence, workpiece clamp, and 6.35mm/1/4”, 9.5mm/3/8” & 12.7mm/1/2” mortising chisels & bits
• X/Y Table travel allows you to move the table in and out or left and right for faster mortising
• Mortising Chisels & Bits: 8mm/5/16”, 11mm/7/16”(Additional)
• Motor: 1/2HP
• Spindle Stroke (mm//in): 76 // 3
• Chisel To Fence (Max) (mm//in): 80 //3-1/8
• Max. Workpiece Height (mm//in): 100 // 4
• Max. Workpiece Depth (mm//in): 76 // 3
• Max. Workpiece Width (mm//in): 13 // 1/2
• Table X-Travel (mm//in): 150 // 5-7/8
• Table Y-Travel (mm//in): 80 // 3-1/8
• Drill Chuck Capacity (mm//in): 13 // 1/2
• Chisel Shank (mm//in): 19 // 3/4
• Table Size (mm//in): 180X125 // 7X5
• Base Size (mm//in): 250X196 // 10X7-3/4
• Packing Dimension (mm): 650X350X300
• N.W./G.W. (kg): 37/39
• Loading Qty of 20’ CN: 392
