1800 Scan Lines Per Second 2D Omnidirectional Laser Scanner Ms9300

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

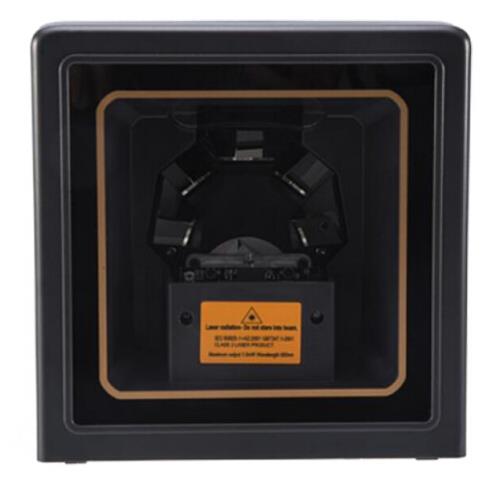

NEW 1D FLAT SCANNER PLATFORM

MS9300

Ms9300,(multi-line laser scanning platform), which is a wider scanning range, sensitive omnidirectional read angle scanner. It can be competent to be rapid, accurate and intuitive scanning operations of the application requirement.

Brief Introduction:
The MS9300 Laser Scanning Platform is designed to be lightweight, versatile, and highly protective. The large scanning window provides a wide range of scanning angles and angles for reading a variety of data carriers, providing the industry's best scanning speed while improving A one-time pass-through rate for damaged, wrinkled, or poorly printed bar codes improves operational efficiency at the retail payment desk. Mainly used in supermarket shopping malls, medical, mobile marketing, office automation and other fields.

Product Features:

1.High-performance sensor
Full coverage of the laser line scanning platform, using high-performance chip, make it with the high sensitivity, strong sensing capability. With the high scanning speed, it can bring you faster working efficiency.

2.Excellent scanning speed

20 scanning lines of patented technology to facilitate the search for the best scanning point. The scanning speed single line raised up to 74 times / second, multi-line up to 1400 times / sec, lightning scanning speed, high accuracy. Easy to operate, close to the bar code that is automatically started scanning, scanning and optimize the nature of a read pass rate to make the speed more accurate.

3.Strong earthquake and drop
Excellent industrial protection design, PC shock rubber and base with a non-slip mat, scan more stable, with many free landing from 3 meters.
4.Support multiple interfaces, multiple languages
Applications Widely used in supermarkets, books, clothing, medicine, banking.

Product Specifications:

Basic Product Specifications
Electrical Characteristics
Interface	RS232/USB HID KEYBOARD
Voltage requirement	5VDC±10%
Current consumption	270mA Max,190mA Min
Optical Characteristics
light source	650nm visible laser diode-
Performance Characteristics
Scan method	5 directions of scan field
Scan line	20 lines
Scan Rate:	1400 scans per second(omnidirectional) 74 scans per second(single-line)
Min resolution	0.127mm/5mil@PCS=90%,Code 39
Min.PCS value	>30%UPC/EAN 13(13mil)
Identification	UPC-A&UPC-E, EAN-8&EAN-13,Code 39(with full ASCII), Codabar(NW7), Code 128&EAN 128, Code 93, Interleaved 2 of 5(ITF), Matrix 2 of 5, Industrial 2 of 5,China Postal Code,MSI
Depth of field	0-216mm(UPC/EAN 100%,PCS=90%)
Indicator
Indicator	Blue and Red
Regulatory
Electrical Safety	CDRHI ; IEC 60825-1:2
EMI/RFI	CE En55022 B,FCC Part 15 Class B ,VCCI,BSMI
Physical Characteristics
Dimensions	100 mm H x120 mm W x180 mm D
Weight	384.6g
case material	PC Black
Environmental Characteristics
Temp	0°- 50°C ( 32°F - 122°F )(operation) , -20°- 60°C (-4°F -140°F)storage)
Humidity	5%-95%( No condensation)
Ambient Light:	Incandescent:100,000 lx, Fluorescent:5000 lx
Shock drop test	1.2m drop onto concrete surface
accessories	Data Cable(RS232?USB), Product specification? Adapter (RS232)
