1.2-4.5mm CNC spring coiling machine

  • Description
Product Detail

Vinston Spring Machinery Co.,Ltd is one of the top level China cmm-12-450r spring making machine manufacturers and suppliers, welcome to buy and wholesale cheap cmm-12-450r spring making machine made in China from our factory.

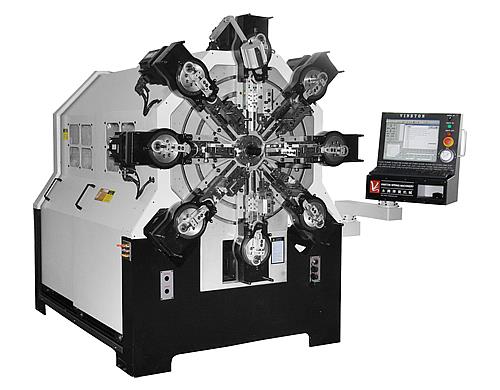

CMM-12-450R spring making machine

Introduction:

Special camless design equipped with Vinston’s free arm technolgy that enables our series of spring machines to easily produce all kinds of difficult springs that is 30% or more efficient than traditional cam type spring former.

Feature Highlights:

Windows based operating system.
Advance attachments such as rotary wire, spinner, and the x-y free arm can be optionally equipped to the machine.
Intuitive graphics user interface is based on Windows and its crash free
Characteristic is due to the employment of a bullet proof software engineering methodology. This makes learning and configuring highly complex springs a simple task.

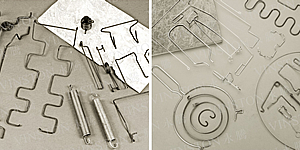

Commonly use in the industries of: automobile, wire forms, entertainment and fitness.

Features Of Spring Machine

Specifications and parameters:

MODELCMM-12-450RSpring Machine
Wire Dia.1.2-4.5mm
Max. Wire Feed10000.00mm
Min. Wire Feed0.01mm
Max. Wire Feed Speed100m / min
Max. Wire Feed LengthUnlimited
Number Of Axes12
Power24000W
Voltage380V
SoftwareIndustrial Grade Computer
Program Storage2000
Air Compresser SystemAir pressure5-6KG/cm
Pin3
DimensionsDepth2200mm
Width1760mm
Height2100mm
Machine Weight3800KG
