USB HD Video Conference Camera

Min Order

1
Product Unit

Pieces
Price

$ 103 - 148
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

TEVO-V720 HD USB HD Video Conference Camera USB2.0 with wide angle

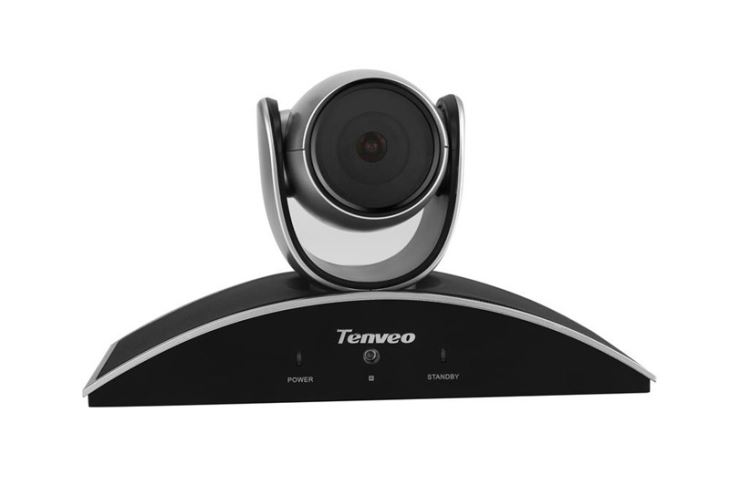

TEVO-V720 USB HD Video Conference Camera

1/2.7" HD color CMOS sensor, 1.3 mega effective pixels, 720P/30,video output (1280*720) , It ensures high definition, while focusing on meeting the needs of the screen fluency.

This camera is suitable for video capture desktop level of small to medium conference rooms and the collection of personal desktop video. It can be "seamless docking, Polycom PVX_8.0, Cisco WebEx series" and other video conferencing software.

Product parameters:

Product Model		TEVO-V720
Image sensor	Sensor	1/2.7? HD color CMOS
	Effective Pixels	1.3 mega pixels
	Minimum Illumination	0.5Lux at F2.0
	White Balance	Auto/Manual
	Gain control	Auto
	Backlight Compensation	On/Off
	S/N Ratio	>50db
Lens	Focal length	2.5mm
	Aperture	Auto/Manual
	Zoom	Fixed Focus
	Horizontal angle of view	120°
Video Output		USB2.0
Signal system		720P(1280x720)VGA(640x480) CIF(352x288)

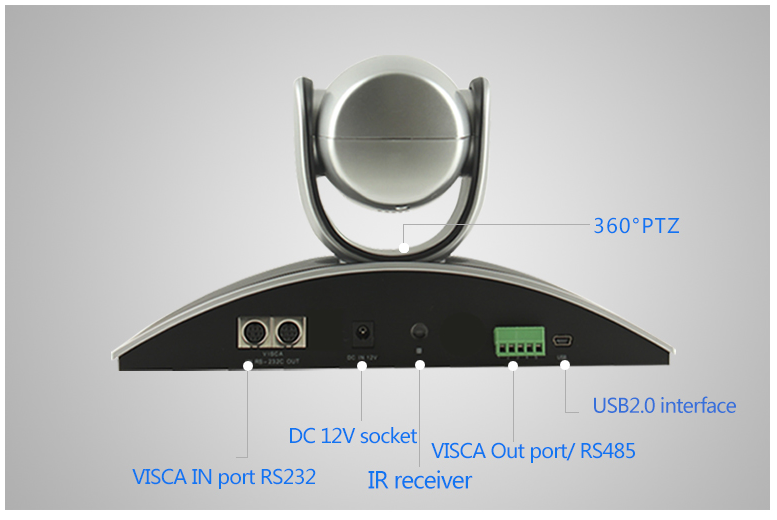

Control terminal		USB,RS-232C,RS-485(Bidirectional)
Control Protocol		VISCA,PELCO-D
Baud rate		9600/38400bps
Cruise Line		4 Lines
Preset position		64
Image flip		Support Horizontal/Vertical image flip
Pan movement speed		1-280°/S
Tilt movement speed		1-100°/S
Pan movement range		360°
Tilt movement range		Up: 90°, Down: 45°
Pan scanning automatically		support
Boundary scan		0-35°
Remote control		IR Wireless remote control P/T
Power Supply		DC12V±10%,1.2A
Work Temperature		0-50?
Work Humidity		0-95% RH
Dimension(LXWXH)		240 x 95 x 145mm/330 x 285 x 130mm(before/after packing)
Weight:		600g/1.66kg (before/after packing)

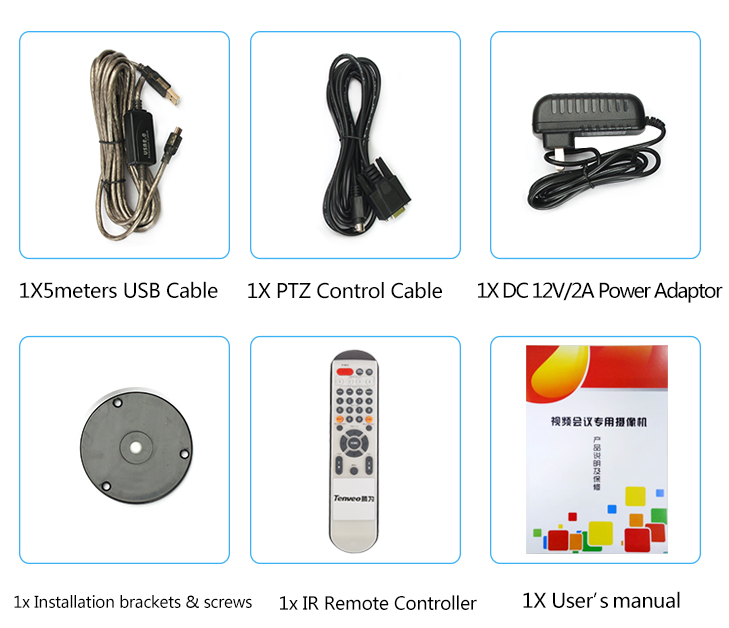

Accessories		DC 12V power adapter, IR remote control, manual, RS-232C serial control line, USB2.0 cable (5 meters), Brackets & screws.
Color		Silver gray manual

USB HD Video Conference Camera.png

USB HD Video Conference Camera (3).png

USB HD Video Conference Camera (2).png

USB HD Video Conference Camera (1).png

USB HD Video Conference Camera (2).jpg

USB HD Video Conference Camera (1).jpg

USB HD Video Conference Camera (4).png

USB HD Video Conference Camera (6).jpg

USB HD Video Conference Camera (5).jpg

FAQ:

1. How to control this Camera?

There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.

2. Which kind of software compatible with this Camera?

It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh, WebEx, easy meeting, Vidtel and working with Microsoft Lync Software, and ZOOM.US, SKYPE, VIDYO Etc.

3. What is the Video Connector?

There are USB 2.0 and 3.5mm universal audio output connector

4. What are the MOQ?

Our MOQ is 1 unit. We can do OEM/ODM if you need.

5. What is your warranty time?

We offer 2 years warranty time. If there is any problem during the warranty time, we will change or repair them for you for free.

With video, the only real thing to consider is the time zone of the person you’re calling.
