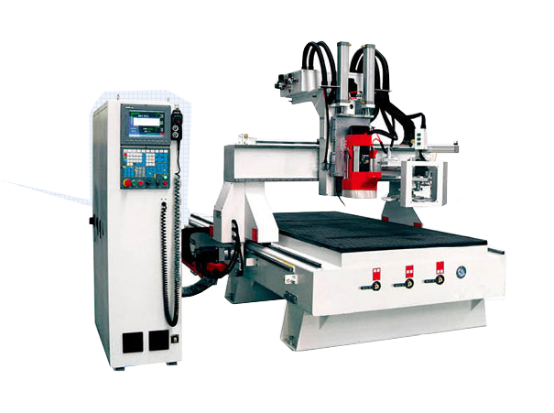

Carrousel Type ATC CNC Router

Standard features of carrousel type ATC CNC router

Working area: 1300*2500*300mm
Heavy duty structure with 8mm thickness steel
Italy HSD 9.0kw air cooling spindle with auto tool change
Japan servo motors and drivers
Delta inverter
Original Taiwan Syntec the best controller
Schneider Electronics from France
Omron limited switch from Japan
T-slot & vacuum combination table
Taiwan TBI ball screw
Professional tool box
oil injection system
Tool sensor
Powder coating technology to avoid damage

Specification for carrousel type ATC CNC router:

Number	Description	Parameter
1	X,Y,Z Working Area	1300x2500x200mm
2	Table Size	1550 3050mm
3	X,Y,Z Traveling Positioning Accuracy	0.03
4	X,Y,Z Repositioning Accuracy	0.05mm
5	Table Surface	Vacuum and T-slot Combined(Option: T-slot table)
6	Frame	Welded structure
7	X, Y Structure	Rack and Pinion
8	Z Structure	Ball Screw
9	Max. Power Consumption	(Without Spindle)4.5kw
10	Max. Rapid Travel Rate	45000mm/min
11	Max. Working Speed	30000mm/min
12	Spindle Power	9HW HSD air cooling,
13	Spindle Speed	0-18000RPM
14	Drive Motors	Yaskawa servo
15	Working Voltage	AC 380V/50HZ 220V/60HZ ,3PH
16	Command Language	G Code and M Code
17	Operating System	Syntec Control System
18	Computer Interface	USB and Ethernet
19	Flash Memory	2G (with U disk)
20	Collet	ER32
21	X,Y Resolution	0.03mm
22	Software Compatibility	Type3 software , Artcam software
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	384022102200 mm
26	N.W.	1700KG
27	G.W.	2000KG
