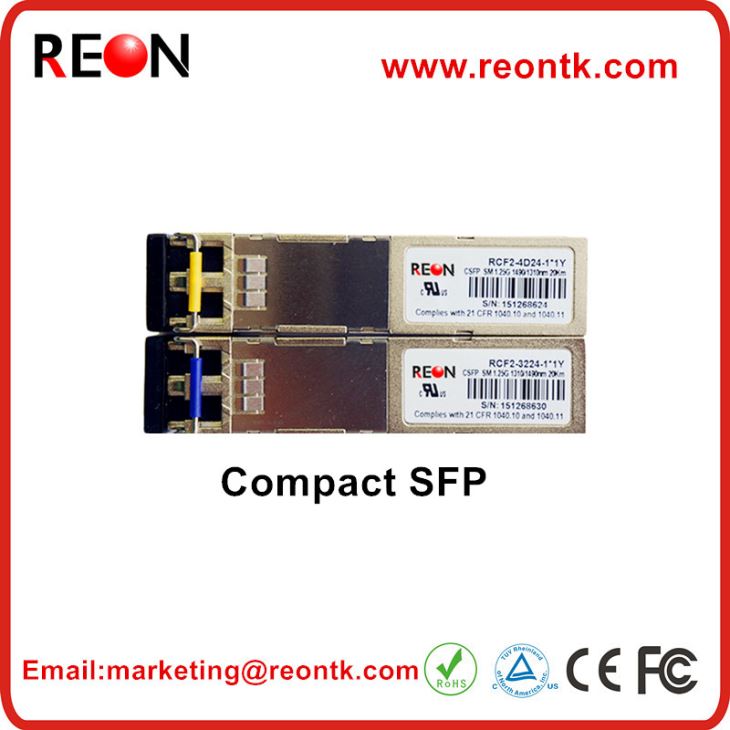

Compact SFP

Min Order

1
Product Unit

Pieces
Origin

China Mainland
Payment
Contact Now Start Order

Description

Product Detail

Product Features
Support up to 1.25Gbps Data Links
Single 3.3V Power supply and TTL Logic Interface
2XBi-directional transceivers in 1 Compact SFP transceiver package
Class 1 FDA and IEC60825-1 Laser Safety Compliant
Operating Case Temperature Standard: 0~+70C and Industrial -40~+85C
Compliant with CSFP MSA Option 2 or Option 1
Compliant with Digital Diagnostic Monitor Interface SFF-8472

Operating Case Temperature
Standard: 0 to +70°C
Extend: -20 to +75°C
Industrial: -40 to +85°C

Product Applications
Fiber Channel Links
Gigabit Ethernet (1000Base-BX)
Point to Point FTTH Application
Other Optical Links

P/N	Package	Fiber Type	Data Rate (bps/Hz)	Reach	Tx(nm)	Rx	Temperature	Connector Type	DDMI
P/N	Package	Fiber Type	Data Rate (bps/Hz)	Reach	Tx(nm)	Rx	(°C)	Connector Type	DDMI
RCF2-3203-1*1Y	Compact BIDI SFP	SM	155M	10~20km	1310 FP	1490 PIN	0~+70, -40~+85	LC	Y
RCF2-4D03-1*1Y	Compact BIDI SFP	SM	155M	10~20km	1490 DFB	1310 PIN	0~+70, -40~+85	LC	Y
RCF2-3203-3*1Y	Compact BIDI SFP	SM	155M	40km	1310 FP	1490 PIN	0~+70, -40~+85	LC	Y
RCF2-4D03-3*1Y	Compact BIDI SFP	SM	155M	40km	1490 DFB	1310 PIN	0~+70, -40~+85	LC	Y
RCF2-3F03-1*1Y	Compact BIDI SFP	SM	155M	10~20km	1310 FP	1550 PIN	0~+70, -40~+85	LC	Y
RCF2-5F03-1*1Y	Compact BIDI SFP	SM	155M	10~20km	1550 FP	1310 PIN	0~+70, -40~+85	LC	Y
RCF2-3F03-3*1Y	Compact BIDI SFP	SM	155M	40km	1310 FP	1550 PIN	0~+70, -40~+85	LC	Y
RCF2-5D03-3*1Y	Compact BIDI SFP	SM	155M	40km	1550 DFB	1310 PIN	0~+70, -40~+85	LC	Y
RCF2-3224-1*1Y	Compact BIDI SFP	SM	1.25G	10~20km	1310 FP	1490 PIN	0~+70, -40~+85	LC	Y
RCF2-4D24-1*1Y	Compact BIDI SFP	SM	1.25G	10~20km	1490 DFB	1310 PIN	0~+70, -40~+85	LC	Y
RCF2-3224-2*1Y	Compact BIDI SFP	SM	1.25G	40km	1310 FP	1490 PIN	0~+70, -40~+85	LC	Y
RCF2-4D24-2*1Y	Compact BIDI SFP	SM	1.25G	40km	1490 DFB	1310 PIN	0~+70, -40~+85	LC	Y
RCF2-3F24-1*1Y	Compact BIDI SFP	SM	1.25G	10~20km	1310 FP	1550 PIN	0~+70, -40~+85	LC	Y
RCF2-5D24-1*1Y	Compact BIDI SFP	SM	1.25G	10~20km	1550 FP	1310 PIN	0~+70, -40~+85	LC	Y
RCF2-3F24-2*1Y	Compact BIDI SFP	SM	1.25G	40km	1310 FP	1550 PIN	0~+70, -40~+85	LC	Y
RCF2-5D24-2*1Y	Compact BIDI SFP	SM	1.25G	40km	1550 DFB	1310 PIN	0~+70, -40~+85	LC	Y
